2MLI-CPUH – Honeywell

PCB Schematic Diagrams:

Part Details:

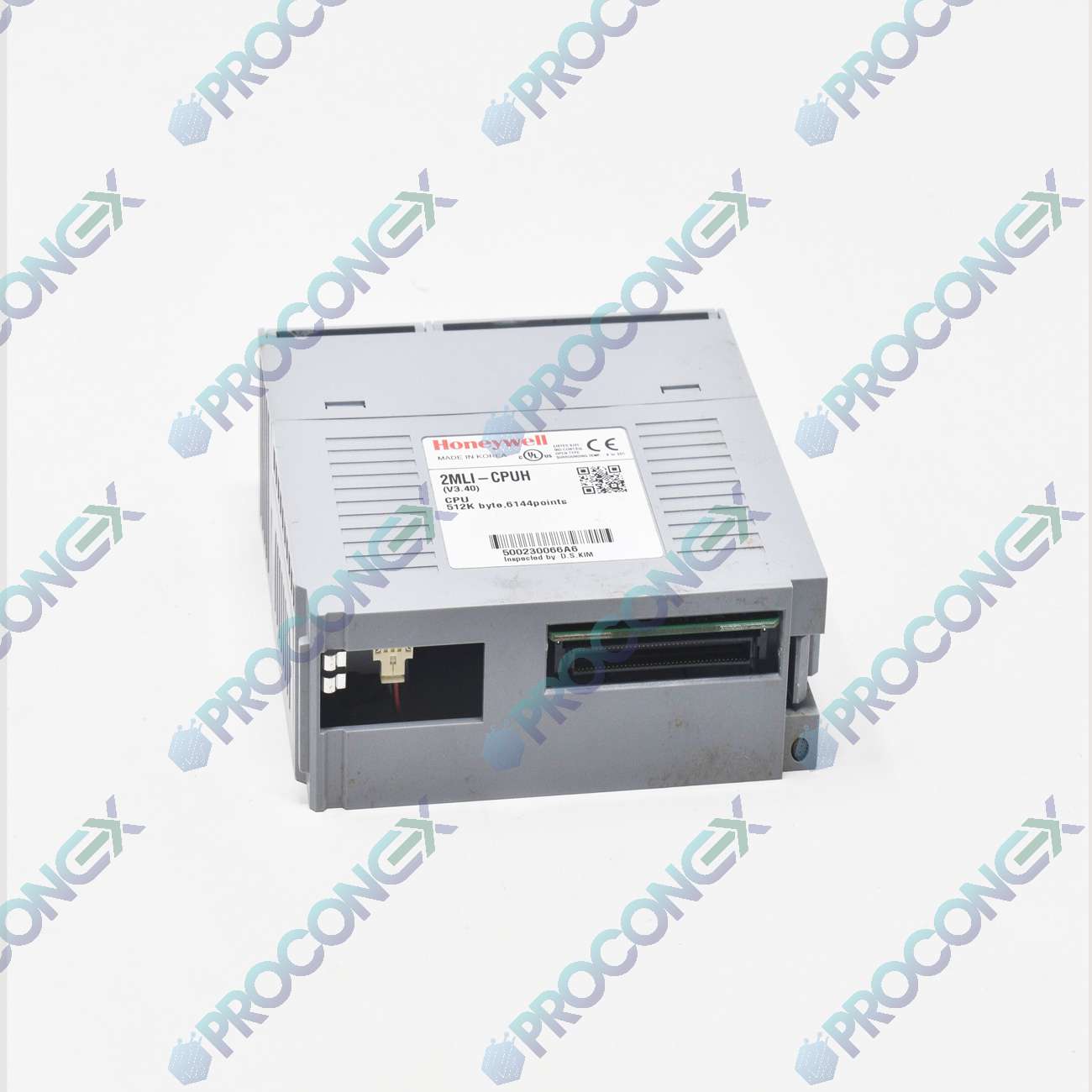

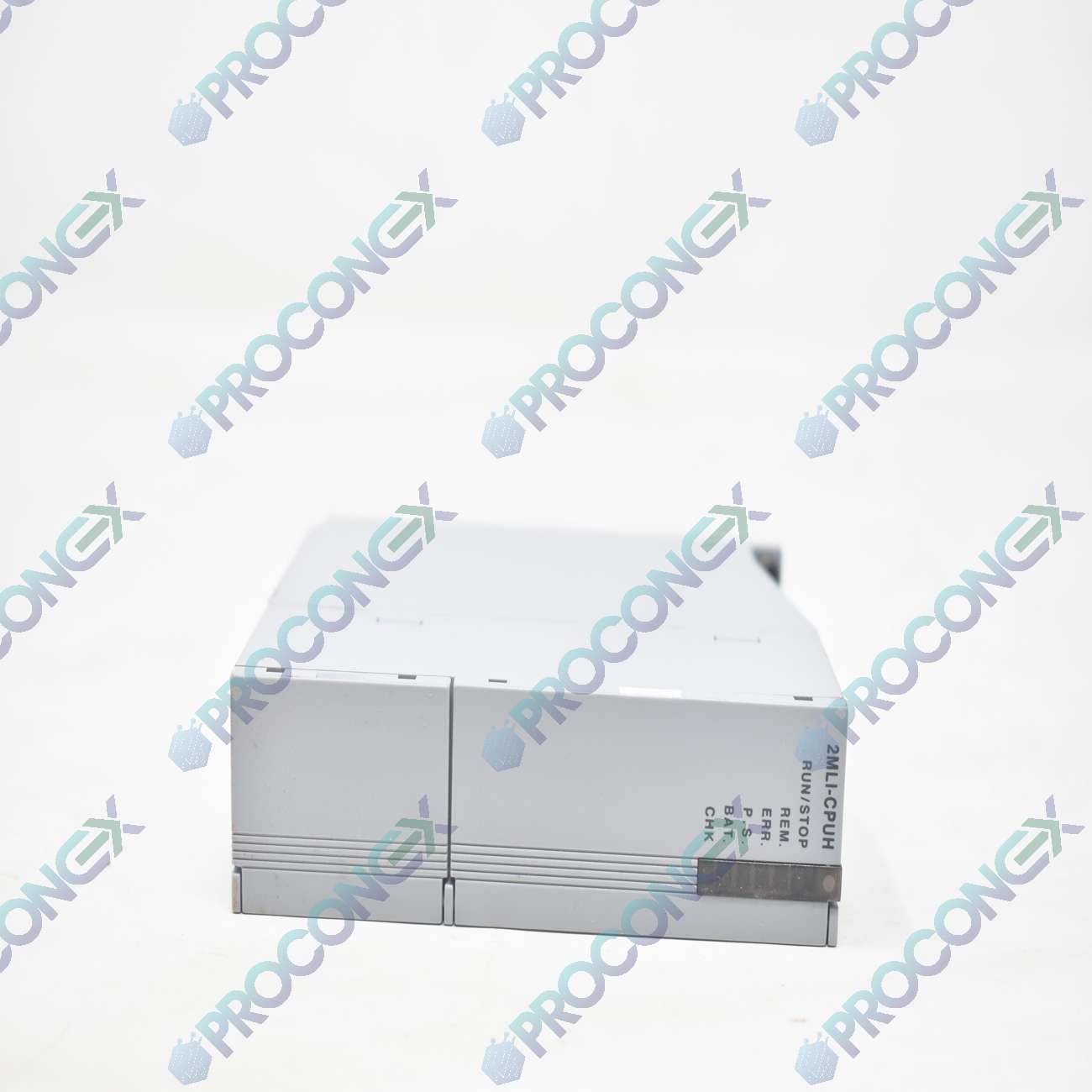

Honeywell make Master logic 200 series assemblies- 2MLI-CPUH

Non-Redundant CPU Module

Manufacturer : Honeywell

Part Number : 2MLI-CPUH

MasterLogic-200 Series

Operation system : Reiterative operation, fixed cycle operation, constant scan

I/O Control system : Scan synchronous batch processing system(refresh system), direct system by command

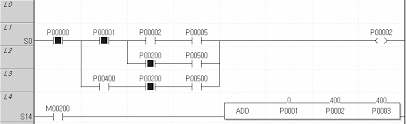

Program language : Ladder Diagram, SFC (Sequential Function Chart), ST(Structure Text)

Operator : 18

Basic function : 136 types + real number operation function

Basic function block : 43

Dedicated function block : Dedicated function

blocks by special function

modules, communication

dedicated function block(P2P)

Basic : 0.028  / step

MOVE : 0.084 / step

Program memory capacity : 3.5 MB

I/O points(installable) : 6,144 points

Max. I/O memory contact : 131,072 points

Symbolic variable area(A) : 512KB (max. 256KB retain settable)

I variable(I) : 16KB

O variable(Q) : 16KB

Direct variable : M : 256KB (max. 128KB retain settable)
