SUBCON-PLUS-PROFIB SC2 – Phoenix Contact
Data Plug from Phoenix Contact
In-Stock: 1
Available, can ship immediately
Part Details:

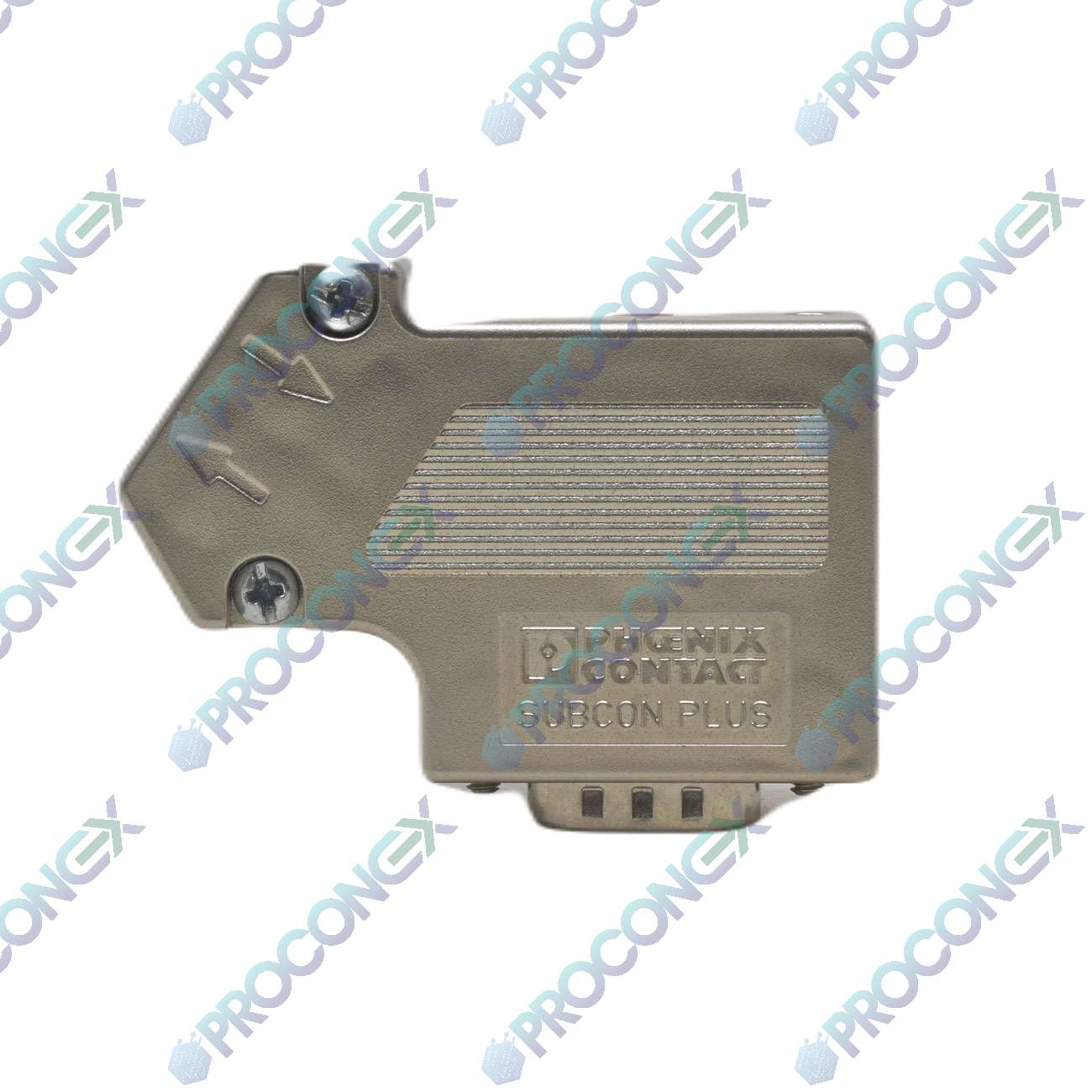

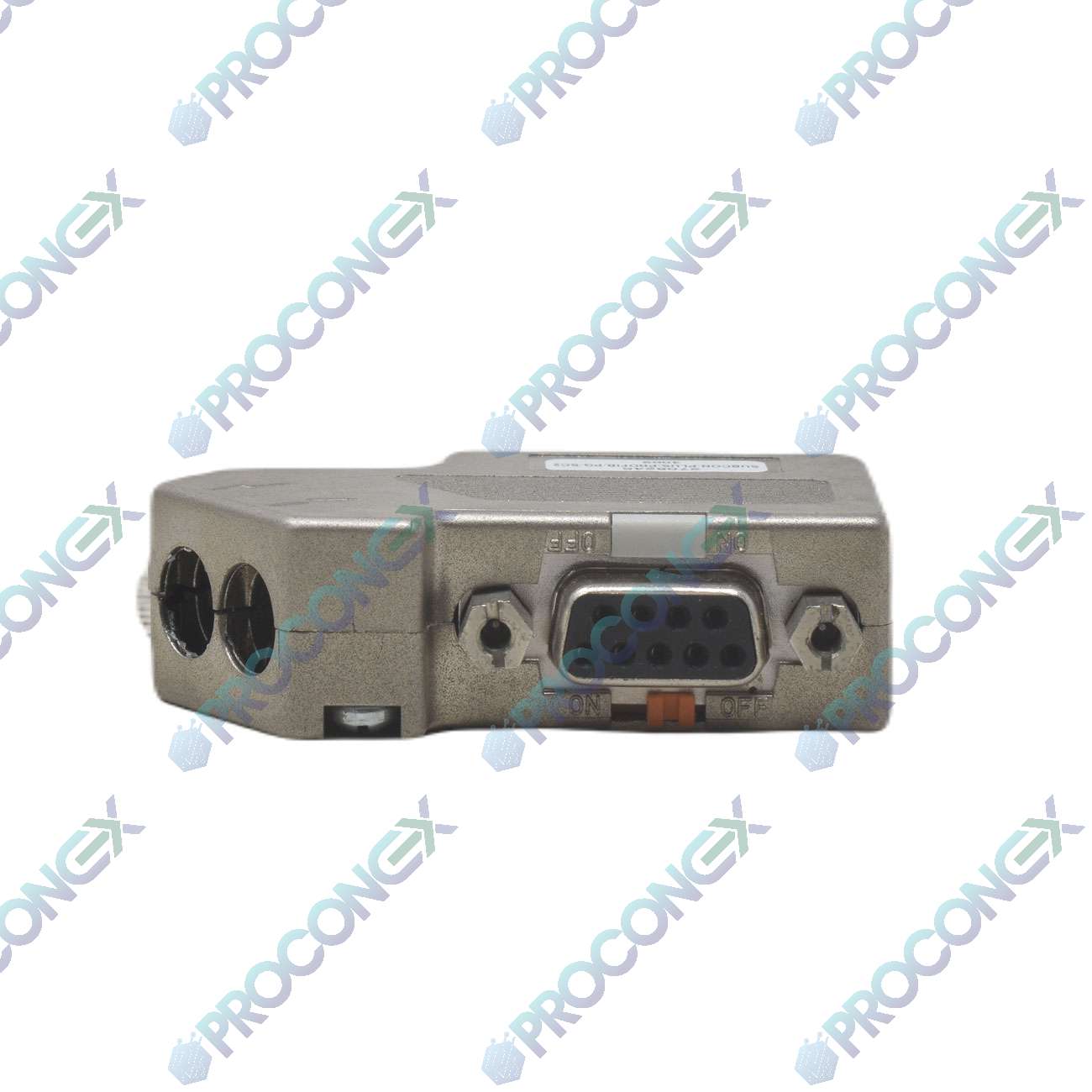

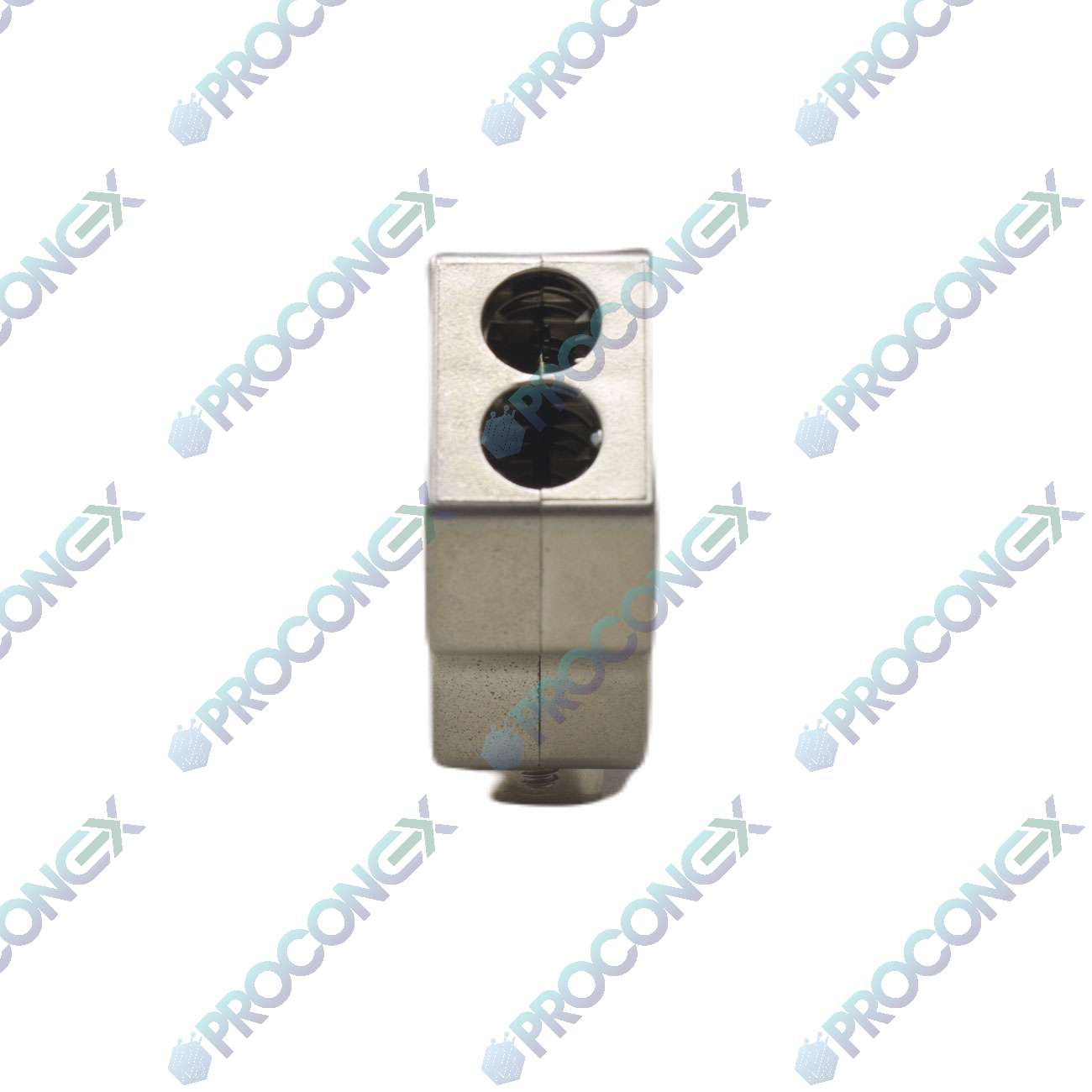

Phoenix contact make SUBCON-PLUS-PROFIB/SC2 - D-SUB bus connector
Product type : Data plug
MTTF : 6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
1817 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
155 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)
Pin assignment : 3, 5, 6, 8
Maximum power dissipation for nominal condition : 0.025 W
Nominal voltage UN : 5 V
Nominal current IN : 100 mA
Transmission medium : Copper
Connection method : D-SUB connector
Connection method : Screw connection
